CNED Augmented Reality Displays




The Best AR Display For Headset Manufacturers

We offer the only Augmented Reality Display currently on the market that is both small enough to fit inside regular glasses and provides higher resolution images than competing displays.

Our customers are calling the CNED the best near eye display available.



IMG_20170726_113233 (1).png


Color -003.jpg

Bright, Colorful &
Immersive.



Explosive Color

The CNED produces bright, lifelike color. VX technology brings color to life with our proprietary design.

Each display produces a broad spectrum of realistic colors allowing for a realistic immersion. From dark to light, our displays produce expansive color and depth.

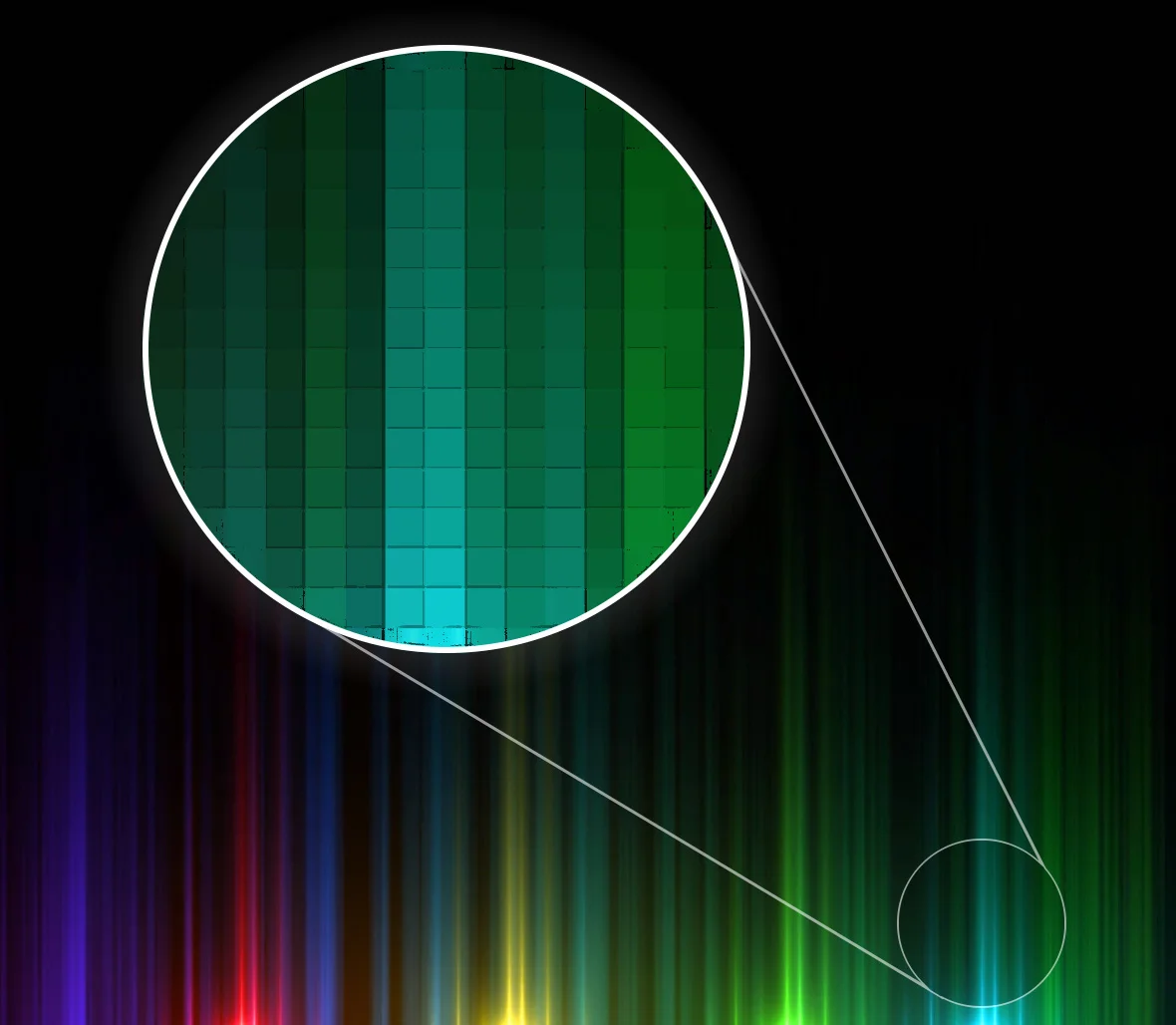

Crisp Image



Each pixel completely fills with color. No screen door effect caused by sub-pixels, only a seamless immersion, flowing pixel to pixel. With over 2 million pixels an eye, edges are not only sharp, they are also smooth.

The CNED is designed for best in market pixel fill factor. No sub-pixels here. Each pixel provides full coverage for red, green, and blue color fields, with a 90% fill factor.

Pix Pitch - 003.jpg


Incredible Speed

A realistic experience keeping augmented reality moving as fast as your eyes. Enjoy a smooth 360Hz frame rate without flicker or motion blur. Fast moving content for AR is now possible.



Designed To Be The Best

Glass - 002.jpg


Impact Safe

Each CNED is made from high-quality material designed for impact resistance. Competing technology, like waveguides made from glass, and other systems made from low quality plastic require extra protective lenses to keep users safe.

The CNED was designed with FDA and ANSI impact requirements in mind.




Light Weight



Our AR displays require less mounting hardware and additional optics in completed smart glasses. This means an overall lighter weight HMD.

Feather - 001.jpg

With Remarkable Specs




CNED - Compact near Eye Display

Augmented Reality Optic Modules

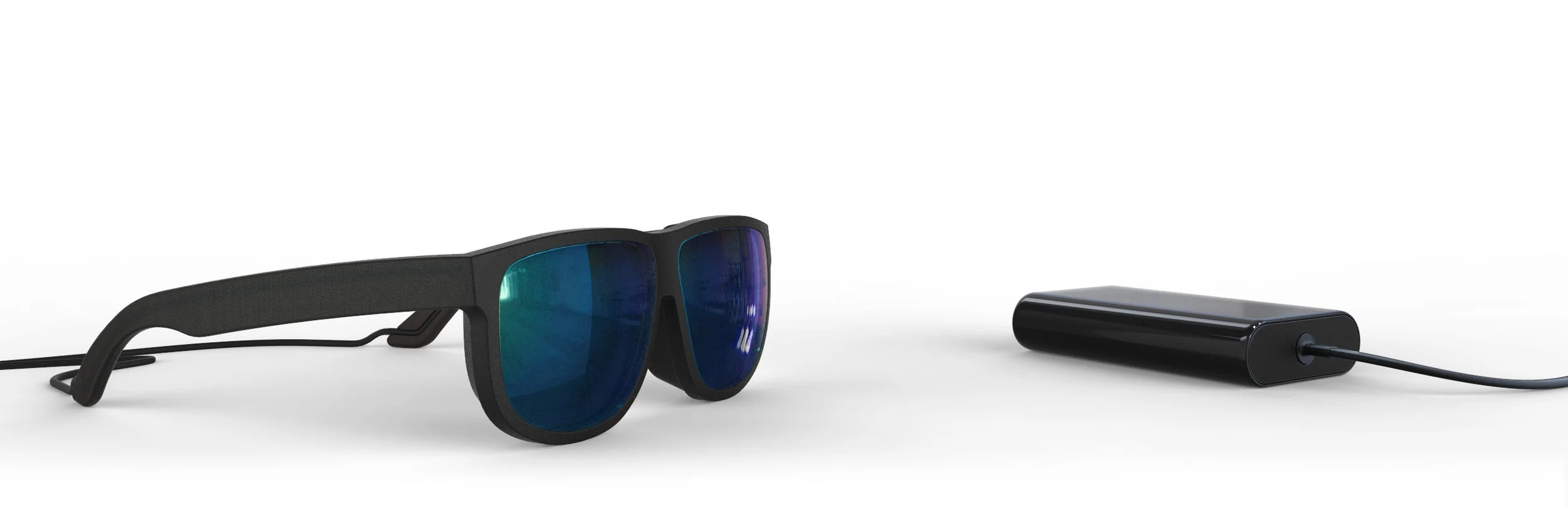

The VX CNED was designed to look like and to fit within regular glasses. It can even fit within other head mounted devices in a more natural way than waveguides or other common display systems available. The CNED is cosmetically desirable and compact in size, perfect for industrial or consumer needs.

TRI-50013 DWG - 001.png


Recommended Uses
Augmented Reality  •  Mixed Reality  •  Smartglasses  •  Industrial Head Mounted Displays  •  AR Safety Glasses




CNED - UW1080

Ultra Wide 1080p - 2560x1080 per eye
54 degrees F.O.V. per eye
RGB sequential color
250mW typical
120Hz RGB at 360Hz frame rate
15mm center thickness
Designed for impact safety
34g with full eye coverage
Standard eye relief



CNED - 1080

HD 1080p - 1920x1080 per eye
43 degrees F.O.V. per eye
RGB sequential color
250mW typical
120Hz RGB at 360Hz frame rate
15.2mm center thickness
Designed for impact safety
35g with full eye coverage
Standard eye relief





Special Features

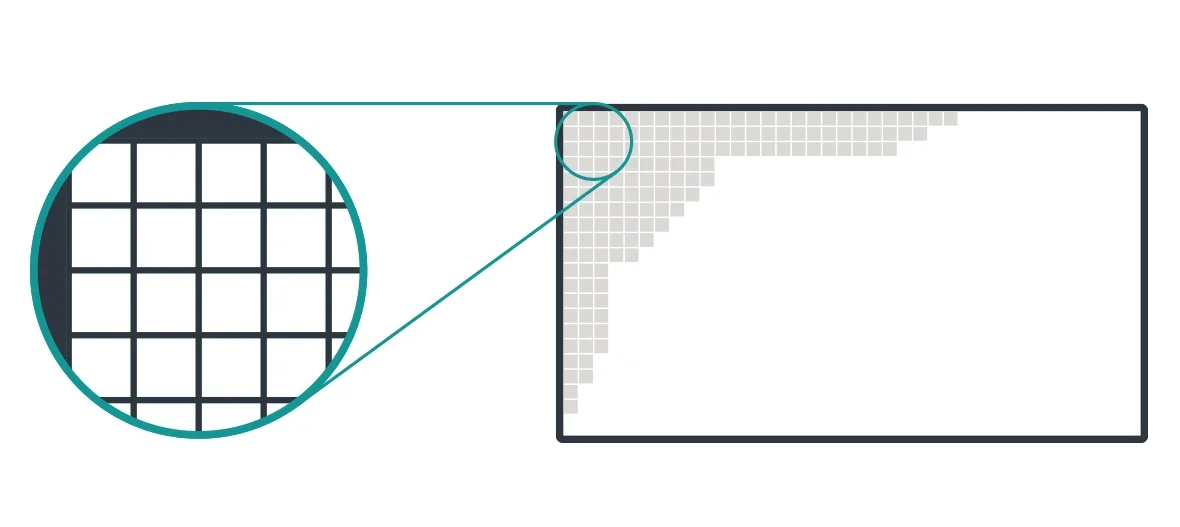

Pixel Fill

Each pixel provides full coverage for red, green, and blue color fields, with a 90% fill factor.

Pix - 001.jpg



FOV - 001.jpg

Binocular Overlap

For a wider binocular field of view, virtual display overlap is recommended to be 85%. This will ensure a good 3D experience while still allowing for greater immersion. When overlap is set lower than 100%, the image origin for each eye’s module will need to shift inward for proper stereo alignment.



Contact us for datasheets and pricing. Development kits are available upon request.

Features are subject to change. Contact your VX representative for the most current features.
